產品介紹

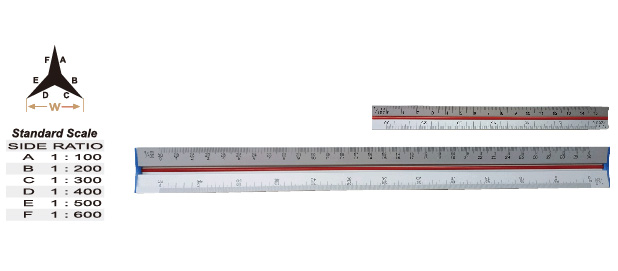

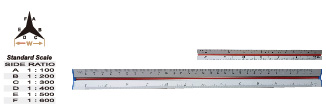

AR-02 / 三角比例尺

item no. size DIMENSION(mm)
AR-02-100 4in / 100mm L120 x W14
AR-02-150 6in / 150mm L170 x W14
AR-02-300 12in / 100mm L330 x W26

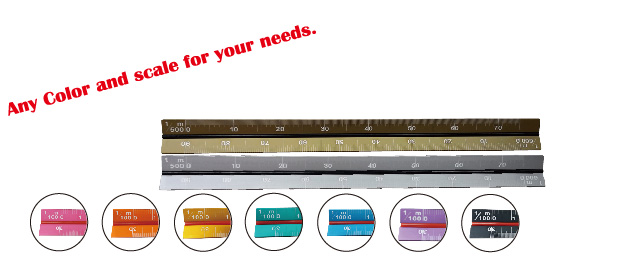

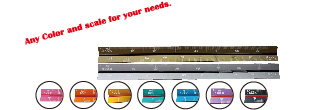

AR-02L / 彩色雷雕比例尺

item no. size DIMENSION(mm)
AR-02L-100 4in / 100mm L120 x W14
AR-02L-150 6in / 150mm L170 x W14
AR-02L-300 12in / 300mm L330 x W26
AR-02L-450 18in / 450mm L480 x W26
AR-02L-600 24in / 600mm L630 x W26
Scale 0f Laser Processing

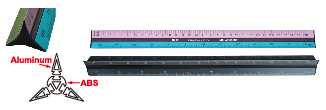

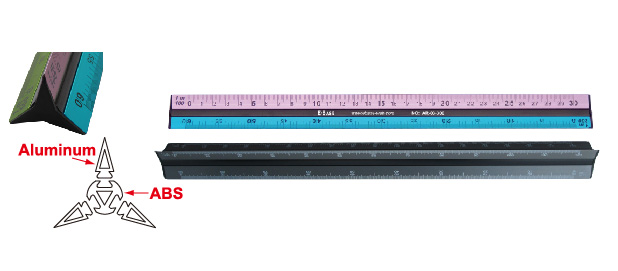

AR-03 / 組合式比例尺

item no. size DIMENSION(mm)
AR-03-300 12in / 300mm L330 x W29
AR-03-450 18in / 450mm L480 x W29
AR-03-600 24in /600mm L630 x W29
